Comfort Low Type Underground Personnel Carriers 7500kg Overall Mass

Shandong Beijun Heavy Industry Co., Ltd.
Contact Now

Comfort Low Type Underground Personnel Carriers 7500kg Overall Mass

Brand Name : Beijun

Model Number : Wcr19

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1

Supply Ability : 100 Set/Sets per Month

Delivery Time : 14-30 days

Packaging Details : Customized packaging

Model : WCR19

Overall mass(kg) : 7500

Rated capacity (people) : 19

Overall Dimension L(mm)xW(mm)xH(mm) : 7613*2000*1700

Wheelbase(mm) : 3595

Front wheelbase(mm) : 1457

Rear wheelbase(mm) : 1590

Minimum ground clearance(mm) : 202

Climbing capacity(°) : 14°

Contact Now

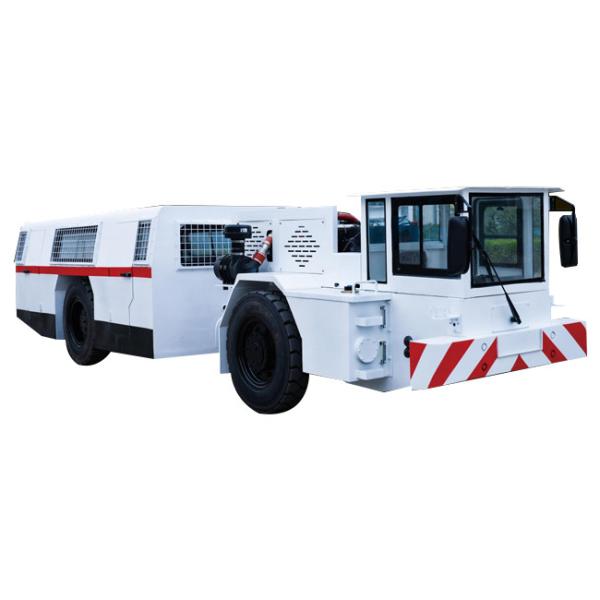

Wcr19 Low Type Transporter Underground Personnel Carrier

Main features
1. The frames are articulated with 40° steering angle.
2. Ergonomics Canopy.
3. Operation Comfort & Safty
4. 4 wheels driving & braking.
5. Front axle is equipped NO-SPIN differential. While rear is ANTI-SLIP.
6. Low vibration level in cab.

Item Main technical parameters
Model WCR19
Overall mass(kg) 7500
Rated capacity (people) 19
Overall Dimension L(mm)xW(mm)xH(mm) 7613*2000*1700
Wheelbase(mm) 3595
Front wheelbase(mm) 1457
Rear wheelbase(mm) 1590
Minimum ground clearance(mm) 202
Climbing capacity(°) 14°
Running speed of each gear(km/h) Forward I gear 0-7
II gear 0-14
III gear 0-25
IV gear 0-36
Reverse I gear 0-9
Reverse II gear 0-14
Reverse III gear 0-25
Reverse IV gear 0-36
Minimum passing ability radius(mm) Outboard 5925
Inside 3714
Maximum tractive force(kN) 47
Transmission mode Hydraulic transmission
Braking type Working brake Hydraulic Brake Wet Brake
Parking brake Spring brake Hydraulic release Fail-safe
Drive type Front wheel drive
